21033812803 | Harting
Socket, 8 pole, solder cup, screw locking, straight, 21033812803
Order No.: 45F995
EAN: 4099889725520
MPN:
21033812803
21 03 381 2803
Series: Circular connectors M12
Unit Price (€ / pc.)
19.8373 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

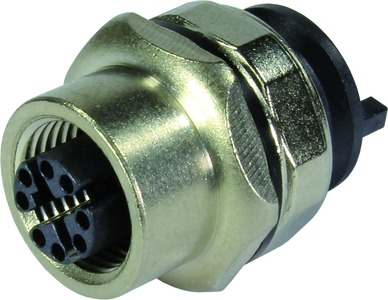

Circular connector, 21033812803, Harting
The 21033812803 is a straight female PCB adapter for front mounting.
Features
- Copper alloy
- Reflow soldering termination (THR)
- Liquid crystal polymer (LCP)
- Rated current: 0.5 A
Technical specifications
| Version | socket | |
| Shell Material | zinc die casting | |
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Assembly | front mounting | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
