21033214401 | Harting
Socket, 4 pole, solder cup, screw locking, angled, 21033214401
Order No.: 45F935
EAN: 4099889725261
MPN:
21033214401
21 03 321 4401
Series: Circular connectors M12
Unit Price (€ / pc.)
10.1745 € *
Standard delivery time from the manufacturer is: 1 Week
Circular connector, 21033214401, Harting

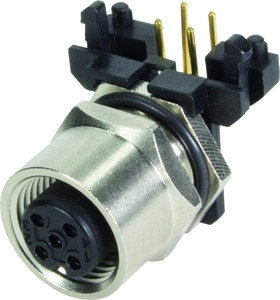

The 21033214401 is an angled female PCB adapter for rear mounting.
Features
- Copper alloy
- Wave soldering termination
- Screw locking
- Polyamide (PA)
- Rated current: 4 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Type of locking | screw locking | |
| Assembly | PCB mounting | |
| contact surface | gold-plated | |
| Version | socket | |
| Contact connection | solder cup | |
| Pin number | 4 pole | |
| Shell Material | copper zinc alloy |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
