21033211831 | Harting
Plug, 8 pole, solder cup, screw locking, straight, 21033211831
Order No.: 45F921
EAN: 4099889725193
MPN:
21033211831
21 03 321 1831
Series: Circular connectors M12
Unit Price (€ / pc.)
27.8579 € *
Standard delivery time from the manufacturer is: 15 Weeks

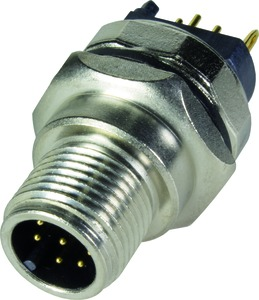

Circular connector, 21033211831, Harting
The 21033211831 is a straight male PCB adapter for front mounting.
Features
- Copper alloy
- Reflow soldering termination (THR)
- Liquid crystal polymer (LCP)
- Rated current: 2 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Shell Material | zinc die casting | |
| Orientation | straight | |
| Assembly | front mounting | |
| Type of locking | screw locking | |
| Pin number | 8 pole | |
| Version | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| RoHS conform | Yes |
| SVHC free | No |
