21033211420 | Harting
Plug, 4 pole, solder cup, screw locking, straight, 21033211420
Order No.: 45F908
EAN: 4099889725131
MPN:
21033211420
21 03 321 1420
Series: Circular connectors M12
Unit Price (€ / pc.)
34.3553 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
34.36 € *
Price list
Quantity
Price per unit*
1 pcs.
34.3553 €
5 pcs.
32.7964 €
10 pcs.
31.8325 €
25 pcs.
29.6429 €
*incl. VAT plus shipping costs
Subject to prior sale

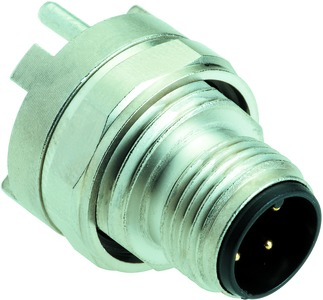

Circular connector, 21033211420, Harting
The 21033211420 is a straight male PCB adapter for rear mounting.
Features
- Copper alloy
- Reflow soldering termination (THR)
- Screw locking
- Polyamide (PA)
- Rated current: 4 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Pin number | 4 pole | |
| Orientation | straight | |
| Contact connection | solder cup | |
| Type of locking | screw locking | |
| Assembly | PCB mounting | |
| contact surface | gold-plated | |
| Shell Material | zinc die casting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
