20820062001 | Harting
Jack, 8 pole, screw locking, straight, 20820062001
Order No.: 45F6012
EAN: 4099889724967
MPN:
20820062001
20 82 006 2001
Series: preLink/Circular connectors M12
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
44.4822 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
44.48 € *
Price list
Quantity
Price per unit*
1 pcs.
44.4822 €
5 pcs.
42.4592 €
10 pcs.
41.2097 €
25 pcs.
38.3894 €
*incl. VAT plus shipping costs
Subject to prior sale

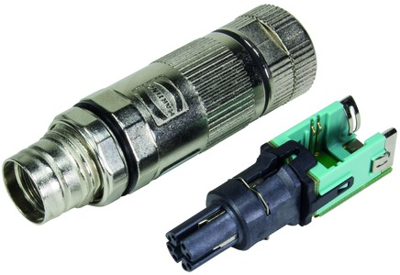

Circular connector, 20820062001, Harting
The 20820062001 is a female circular connector with a conductor cross-section: 0.1 - 0.12 mm² / 0.22 - 0.32 mm² max.
Features
- Cable connector
- Zinc die-cast
- Screw locking
- Panel feed through
- Degree of protection: IP65
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| Cable cross-section | 0.22-0.32 mm² | |
| Pin number | 8 pole | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Cable diameter | 5 to 9.5 mm | |
| contact surface | gold-plated | |
| Shell Material | zinc die casting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
