19628242273 | Harting

Surface mount housing, size 24B, die-cast aluminum, 2xM40, angled, cross bow locking, IP66, 19628242273

Order No.: 42P6743
EAN: 5713140568891
MPN:
19628242273
Series: Han EMC/B
19628242273 Harting Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
69.6031 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
69.60 € *
Price list
Quantity
Price per unit*
1 pcs.
69.6031 €
2 pcs.
68.2108 €
5 pcs.
64.7955 €
10 pcs.
60.9161 €
*incl. VAT plus shipping costs
**Subject to prior sale

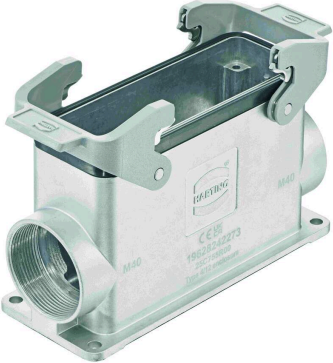

Surface mounted housing, 19628242273, Harting

Surface mounted housing, Size: 24 B, High construction, Double locking lever, Polycarbonate (PC), Stainless steel, Side entry, 2x M40, Material (hood/housing): Aluminium die-cast, Uncoated, Unpainted, Material (seal): NBR.

Technical specifications
Version base housing
Shell size 24B
Shell Material die-cast aluminum
Cable Outlet 2xM40, angled
Type of locking cross bow locking
Degree of protection (IP) IP66
Logistics
Country of origin CN
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
