19620031165 | Harting

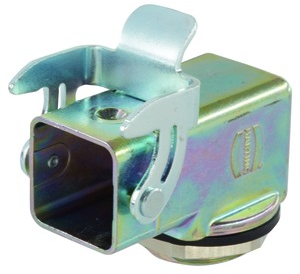

Grommet housing, size 3A, zinc die casting, M25, angled, longitudinal bow locking, IP44/IP65/IP67, 19620031165

Order No.: 45F5659
EAN: 4099889767100
MPN:
19620031165
19 62 003 1165
Series: Han EMV
19620031165 Harting Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
20.6465 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
20.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
20.6465 €

Screw mounted housing, 19620031165, HARTING

Screw mounted housing with single locking lever and angled entry, material: zinc die-cast, uncoated.

Technical specifications
Filter Property Value
Version grommet housing
Shell size 3A
Shell Material zinc die casting
Cable Outlet M25, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP44/IP65/IP67
Logistics
Property Value
Country of origin DE
Customs tariff number 85389099
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
