19120080512 | Harting
Grommet housing, size Han-Compact, zinc die casting, M25, angled, longitudinal bow locking, IP65, 19120080512
Unit Price (€ / pc.)
37.7468 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
37.75 € *
Price list
Quantity
Price per unit*
1 pcs.
37.7468 €
5 pcs.
36.0213 €
10 pcs.
34.9622 €
25 pcs.
32.5703 €
*incl. VAT plus shipping costs
Subject to prior sale

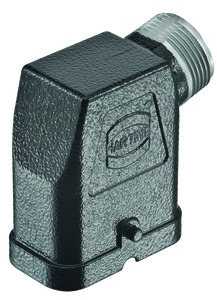

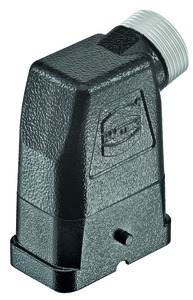

Hood, 19120080512, HARTING
Hood for cable gland with separate PE terminating point, single locking lever and side entry, material: zinc die-cast, nickel plated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | grommet housing | |
| Shell size | Han-Compact | |
| Shell Material | zinc die casting | |
| Cable Outlet | M25, angled | |
| Type of locking | longitudinal bow locking | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
