09300480295 | Harting

Surface mount housing, size 48B, die-cast aluminum, 2 x PG29, angled, longitudinal bow locking, IP65, 09300480295

Order No.: 44F2798
EAN: 4099889751338
MPN:
09300480295
09 30 048 0295
Series: Han B
09300480295 Harting Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
109.0635 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
109.06 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
109.0635 €

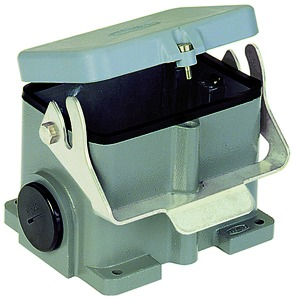

Surface mounted housing, 09300480295, HARTING

Surface mounted housing with thermo-plastic cover, single locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications
Filter Property Value
Version bulkhead housing
Shell size 48B
Shell Material die-cast aluminum
Cable Outlet 2 x PG29, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
SVHC free No
Date of RoHS guidelines 3/31/15
