09300240231 | Harting

Surface mount housing, size 24B, die-cast aluminum, PG29, angled, cross bow locking, IP65, 09300240231

Order No.: 44F2661
EAN: 4099889750348
MPN:
09300240231
09 30 024 0231
Series: Han B
09300240231 Harting Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
29.2621 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
29.26 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
29.2621 €

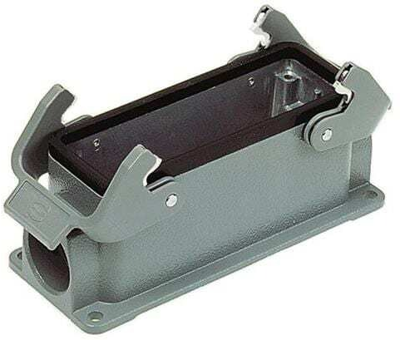

Surface mounted housing, 09300240231, HARTING

Surface mounted housing with double locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications
Version bulkhead housing
Shell size 24B
Shell Material die-cast aluminum
Cable Outlet PG29, angled
Type of locking cross bow locking
Degree of protection (IP) IP65
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
SVHC free No
RoHS conform Yes
