09300160271 | Harting

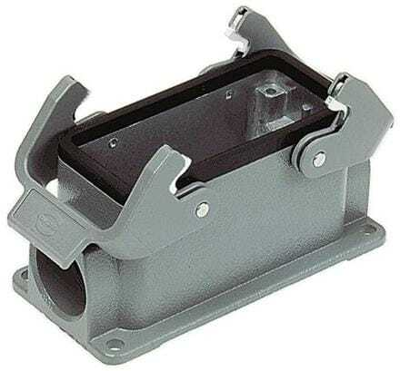

Surface mount housing, size 16B, die-cast aluminum, 2 x PG29, angled, cross bow locking, IP65, 09300160271

Order No.: 44F2582
EAN: 4099889749700
MPN:
09300160271
09 30 016 0271
Series: Han B
09300160271 Harting Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
27.3462 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
27.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
27.3462 €

Surface mounted housing, 09300160271, HARTING

Surface mounted housing with double locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications
Filter Property Value
Version bulkhead housing
Shell size 16B
Shell Material die-cast aluminum
Cable Outlet 2 x PG29, angled
Type of locking cross bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
SVHC free No
Date of RoHS guidelines 3/31/15
