09300101256 | Harting

Surface mount housing, size 10B, die-cast aluminum, PG16, angled, longitudinal bow locking, IP65, 09300101256

Order No.: 42F542
EAN: 4099889745887
MPN:
09300101256
09 30 010 1256
Series: Han B
09300101256 Harting Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
22.6457 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Total Price:
22.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
22.6457 €

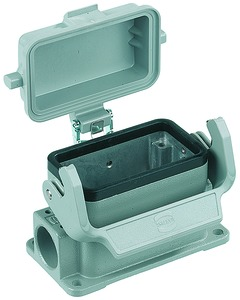

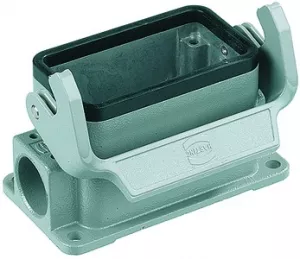

Surface mounted housing, 09300101256, HARTING

Surface mounted housing with thermo-plastic cover, single locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications
Version bulkhead housing
Shell size 10B
Shell Material die-cast aluminum
Cable Outlet PG16, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
SVHC free No
RoHS conform Yes
