09300060542 | Harting
Grommet housing, size 6B, die-cast aluminum, 1xPG21, angled, longitudinal bow locking, IP65/IP66/IP67, 09300060542
Order No.: 45F0701
MPN:
09300060542
Han 6B-GS-21
This item is no longer available.
As an alternative, we recommend the following item:
Grommet housing, size 6B, die-cast aluminum, PG21, angled, longitudinal bow locking, IP44/IP65/IP67, 09300060542
Order No.: 42F200
Manufacturer: Harting
per pc. 13.7683 € *

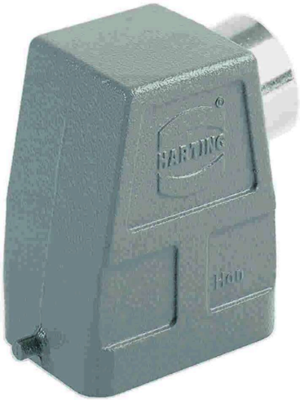

Grommet housing, 09300060542, Harting
The 09300060542 is a side entry, high construction Grommet housing with adapter for use as a connector according to IEC 61984.
Technical specifications
| Version | grommet housing | |
| Shell size | 6B | |
| Shell Material | die-cast aluminum | |
| Cable Outlet | 1xPG21, angled | |
| Type of locking | longitudinal bow locking | |
| Degree of protection (IP) | IP65/IP66/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
