09300060293 | Harting

Surface mount housing, size 6B, die-cast aluminum, 2 x PG29, angled, longitudinal bow locking, IP65, 09300060293

Order No.: 44F2459
EAN: 4099889748772
MPN:
09300060293
09 30 006 0293
Series: Han B
09300060293 Harting Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
24.157 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
24.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
24.157 €

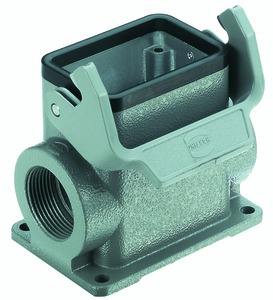

Surface mounted housing, 09300060293, HARTING

Surface mounted housing with single locking lever and side entry, material: aluminium die-cast, powder-coated.

Technical specifications
Filter Property Value
Version bulkhead housing
Shell size 6B
Shell Material die-cast aluminum
Cable Outlet 2 x PG29, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
SVHC free No
Date of RoHS guidelines 3/31/15
