09200160321 | Harting

Surface mount housing, size 16A, die-cast aluminum, longitudinal bow locking, IP65, 09200160321

Order No.: 42F961
EAN: 4099889746624
MPN:
09200160321
09 20 016 0321
Series: Han A

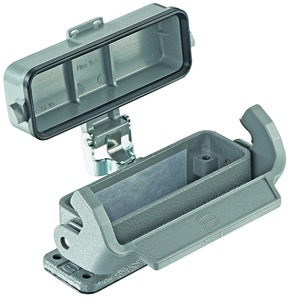

09200160321 Harting Housings for HDC Connectors Image 1

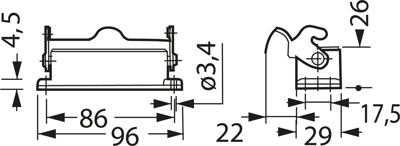

09200160321 Harting Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.7417 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
20.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
20.7417 €

Bulkhead mounted housing, 09200160321, HARTING

Bulkhead mounted housing with thermo-plastic cover, single locking lever, material: aluminium die-cast, powder-coated.

Technical specifications
Filter Property Value
Shell Material die-cast aluminum
Degree of protection (IP) IP65
Version bulkhead housing
Shell size 16A
Type of locking longitudinal bow locking
Logistics
Property Value
Country of origin DE
Customs tariff number 85389099
Compliance
Property Value
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
