09200100301 | Harting

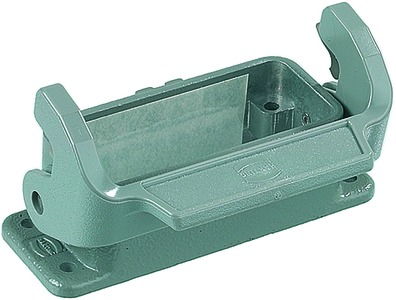

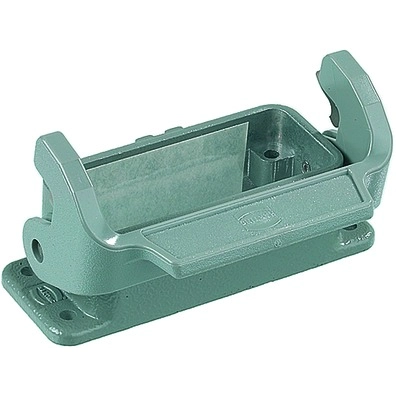

Surface mount housing, size 10A, die-cast aluminum, longitudinal bow locking, IP65, 09200100301
Unit Price (€ / pc.)
15.1011 € *
Available: 46 pcs.
Total Price:
15.10 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1011 €
10 pcs.
13.2923 €
50 pcs.
12.3879 €
150 pcs.
11.8286 €
500 pcs.
11.2336 €
*incl. VAT plus shipping costs
Subject to prior sale
Bulkhead mounted housing, 09200100301, HARTING
Bulkhead mounted housing with single locking lever, material: aluminium die-cast, powder-coated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65 | |
| Type of locking | longitudinal bow locking | |
| Shell size | 10A | |
| Version | bulkhead housing | |
| Shell Material | die-cast aluminum |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| Date of RoHS guidelines | 3/31/15 |
