17660042201 | Harting
Female connector, 4 pole, pitch 3 mm, straight, 17660042201
Order No.: 44F9143
EAN: 4099891037482
MPN:
17660042201
17 66 004 2201
Unit Price (€ / pc.)
5.7358 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

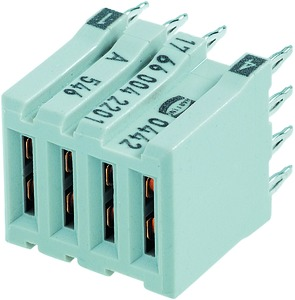

Female connector, 17660042201, HARTING
Female connector, thermoplastic molding material, glass fiber reinforced, beige, motherboard to daughtercard, press-fit connection, rated current: 20 A, contacts: 4, straight, copper alloy, gold-plated, requirement level: 2.
The technical characteristics of 17660042201 from Harting at glance
- max. Operating temperature 125 °C
- Angle printed circuit board/contact 0°/180° (horizontal)
- min. Operating temperature -55 °C
- Connection type PCB to PCB
- Number of rows of plug contacts 1
- Number of plug contacts 4
- Execution of the electrical connection Print connection
- Rated current 20 A
- Flammability class of the insulating material (based on UL 94) V0
- Description har-bus HM Power female 4p PL2
- Contact design feminine (female)
- Contact coating material Gold
- Packing type Tube
- Insulator material Thermoplast
- Grid dimension of the contact 3 mm
- Grid dimension of the connections 3 mm
- Product type description har-bus HM Power female 4p PL2
Technical specifications
| Connection | press-in connection | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated current | 20 A | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 3 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
