17221251101 | Harting

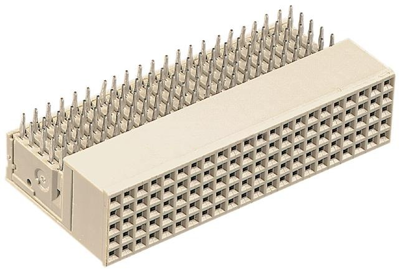

Female connector, 125 pole, pitch 2 mm, angled, 17221251101
Unit Price (€ / pc.)
13.7088 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
13.71 € *
Price list
Quantity
Price per unit*
1 pcs.
13.7088 €
10 pcs.
12.7449 €
50 pcs.
11.7334 €
100 pcs.
10.6743 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 17221251101, Harting
Female connector, press-in termination, rated current: 1 A, contacts: 125, angled, copper alloy, noble metal over Ni mating side, Ni termination side, performance level: 1, thermoplastic resin, glass-fibre filled, beige.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | B25 | |
| Contact type | socket | |
| Pin number | 125 pole | |
| Grid | 2 mm | |
| Connection | press-in connection | |
| Rated current | 1 A | |
| Orientation | angled | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
