17102001201 | Harting

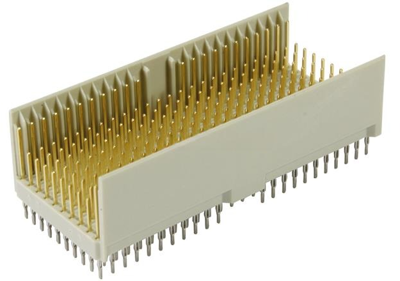

Male connector, 200 pole, pitch 2 mm, straight, 17102001201
Unit Price (€ / pc.)
15.0892 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
15.09 € *
Price list
Quantity
Price per unit*
1 pcs.
15.0892 €
10 pcs.
14.0301 €
50 pcs.
12.9115 €
100 pcs.
11.7453 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 17102001201, Harting
Male connector, press-in termination, rated current: 1 A, contacts: 200, straight, copper alloy, noble metal over Ni mating side, Ni termination side, performance level: 1, thermoplastic resin, glass-fibre filled, beige.
Technical specifications
| Design | DE | |
| Contact type | pin | |
| Pin number | 200 pole | |
| Grid | 2 mm | |
| Connection | press-in connection | |
| Rated current | 1 A | |
| Orientation | straight | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
