09734966804 | Harting

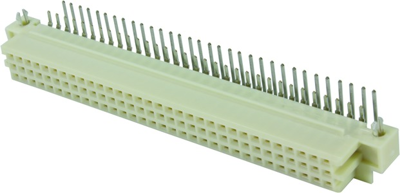

Female connector, type R, 96 pole, a-b-c, pitch 2.54 mm, solder pin, angled, 09734966804
Unit Price (€ / pc.)
5.6763 € *
Standard delivery time from the manufacturer is: 5 Weeks
Female connector, 09734966804, Harting
Female connector, Reflow soldering termination (THR), Rated current: 2 A, Contacts: 96, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, With snap-in clip, Thermoplastic resin, glass-fibre filled, Beige
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Pin number | 96 pole | |
| Contact row assignment | a-b-c | |
| Contact type | socket | |
| Rated current | 2 A | |
| Connection | solder pin | |
| Performance level | 2 | |
| Design | R | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
