09721646974 | Harting

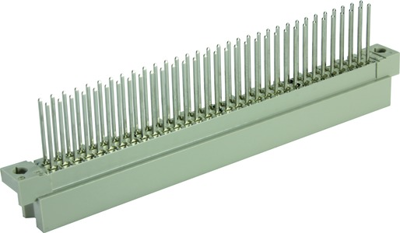

Male connector, type Q, 64 pole, a-b, pitch 2.54 mm, press-in connection, straight, 09721646974
Unit Price (€ / pc.)
6.5569 € *
Standard delivery time from the manufacturer is: 7 Weeks
Male connector, 09721646974, Harting
Male connector, Press-in termination, Wrap termination, Rated current: 2 A, Contacts: 64, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2 A | |
| Performance level | 2 | |
| Contact row assignment | a-b | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Orientation | straight | |
| Design | Q | |
| Connection | press-in connection | |
| Pin number | 64 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
