09281482903 | Harting

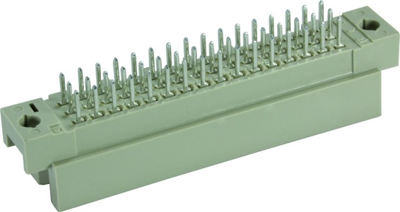

Male connector, type 2R, 48 pole, a-b-c, pitch 2.54 mm, solder pin, straight, 09281482903
Unit Price (€ / pc.)
5.1527 € *
Standard delivery time from the manufacturer is: 7 Weeks
Male connector, 09281482903, Harting
Male connector, Wave soldering termination, Rated current: 2 A, Contacts: 48, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact row assignment | a-b-c | |
| Contact type | pin | |
| Connection | solder pin | |
| Performance level | 1 | |
| Orientation | straight | |
| Pin number | 48 pole | |
| Design | 2R | |
| Rated current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
