09281322902 | Harting

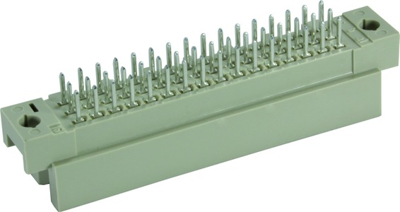

Male connector, type 2R, 32 pole, a-b-c, pitch 2.54 mm, solder pin, straight, 09281322902
Unit Price (€ / pc.)
8.0325 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
2,409.75 € *
Price list
Quantity
Price per unit*
300 pcs.
8.0325 €
500 pcs.
7.8064 €
1000 pcs.
7.5565 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 09281322902, Harting
Male connector, Wave soldering termination, Rated current: 2 A, Contacts: 32, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact row assignment | a-b-c | |
| Contact type | pin | |
| Connection | solder pin | |
| Performance level | 1 | |
| Orientation | straight | |
| Pin number | 32 pole | |
| Design | 2R | |
| Rated current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
