09241206579 | Harting

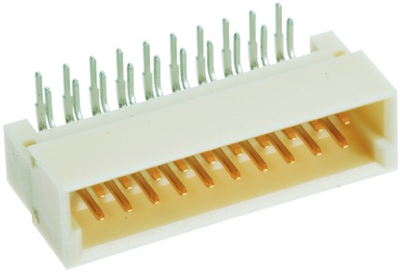

Male connector, type 3B, 20 pole, a-b, pitch 2.54 mm, solder pin, angled, 09241206579
Unit Price (€ / pc.)
4.0341 € *
Standard delivery time from the manufacturer is: 6 Weeks
Male connector, 09241206579, Harting
Male connector, Reflow soldering termination (THR), Rated current: 2 A, Contacts: 20, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: Without fixing flange, Thermoplastic resin, glass-fibre filled, Beige
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact row assignment | a-b | |
| Contact type | pin | |
| Connection | solder pin | |
| Performance level | 2 | |
| Orientation | angled | |
| Pin number | 20 pole | |
| Design | 3B | |
| Rated current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
