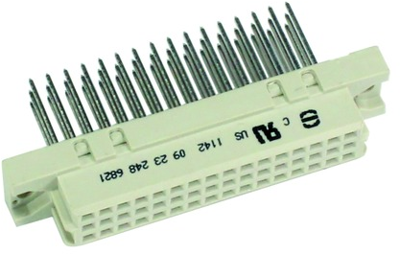

09232486821 | Harting
Female connector, type 2C, 48 pole, a-b-c, pitch 2.54 mm, wire-wrap, straight, 09232486821
Unit Price (€ / pc.)
6.545 € *
Standard delivery time from the manufacturer is: 1 Week
Female connector, 09232486821, Harting
Female connector, Wrap termination, Rated current: 2 A, Contacts: 48, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Pin number | 48 pole | |
| Contact row assignment | a-b-c | |
| Contact type | socket | |
| Rated current | 2 A | |
| Connection | wire-wrap | |
| Performance level | 2 | |
| Design | 2C | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | FI |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
