09231482922 | Harting

Male connector, type 2C, 48 pole, a-b-c, pitch 2.54 mm, solder pin, straight, 09231482922

Order No.: 44F2242
EAN: 4099891013912
MPN:
09231482922
09 23 148 2922
Series: DIN 41612
09231482922 Harting DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
4.4149 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
4.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.4149 €

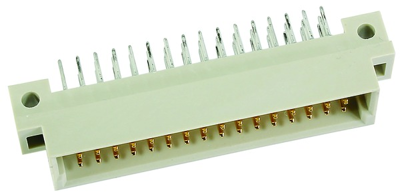

Male connector, 09231482922, Harting

Male connector, Wave soldering termination, Rated current: ‌2 A, Contacts: 48, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Technical specifications
Filter Property Value
Rated current 2 A
Performance level 1
Contact row assignment a-b-c
Contact type pin
Grid 2.54 mm
Orientation straight
Design 2C
Connection solder pin
Pin number 48 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
