09231326919 | Harting
Male connector, type 2C, 32 pole, a-b-c, pitch 2.54 mm, solder pin, straight, 09231326919
Unit Price (€ / pc.)
3.0702 € *
Standard delivery time from the manufacturer is: 6 Weeks

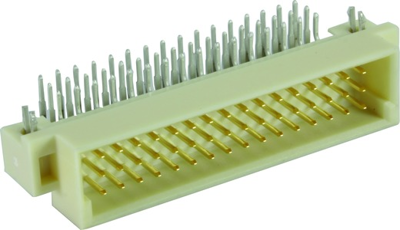

Male connector, 09231326919, Harting
Male connector, Reflow soldering termination (THR), Rated current: 2 A, Contacts: 32, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, Beige
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2 A | |
| Performance level | 2 | |
| Contact row assignment | a-b-c | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Orientation | straight | |
| Design | 2C | |
| Connection | solder pin | |
| Pin number | 32 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
