09062327894 | Harting

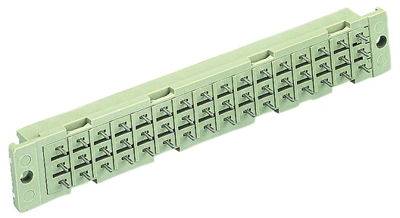

Female connector, type F, 32 pole, z-b-d, pitch 5.08 mm, solder pin, straight, gold-plated, 09062327894
Order No.: 44F930
EAN: 4099891019372
MPN:
09062327894
09 06 232 7894
Unit Price (€ / pc.)
6.8663 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Female connector, 09062327894, Harting
Female connector, Wave soldering termination, Rated current: 6 A, Contacts: 32, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 3, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, Shroud, coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 3 | |
| Connection | solder pin | |
| Design | F | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Contact row assignment | z-b-d | |
| Rated current | 6 A | |
| Orientation | straight | |
| Pin number | 32 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
