09062322821 | Harting

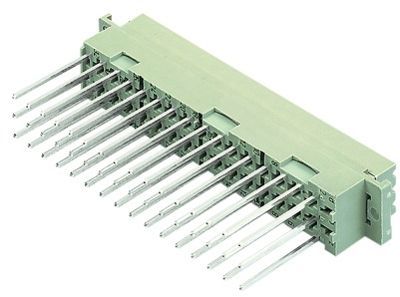

Female connector, type F, 32 pole, z-b-d, pitch 5.08 mm, wire-wrap, straight, 09062322821
Unit Price (€ / pc.)
10.6862 € *
Standard delivery time from the manufacturer is: 17 Weeks
Female connector, 09062322821, Harting
Female connector, Wrap termination, Rated current: 6 A, Contacts: 32, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Contact row assignment | z-b-d | |
| Contact type | socket | |
| Connection | wire-wrap | |
| Performance level | 1 | |
| Orientation | straight | |
| Pin number | 32 pole | |
| Design | F | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
