09061162511 | Harting

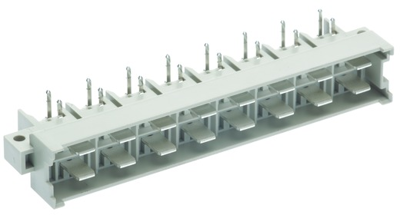

Male connector, type H16, 16 pole, z-d, pitch 10.16 mm, solder pin, angled, silver-plated, 09061162511
Unit Price (€ / pc.)
11.4359 € *
Standard delivery time from the manufacturer is: 12 Weeks
Male connector, 09061162511, Harting
Male connector, Wave soldering termination, Rated current: 15 A, Contacts: 16, Angled, Copper alloy, Silver plated Mating side, Sn over Ni Termination side, Performance level: 1, acc. to IEC 60603-2, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | H16 | |
| Contact type | pin | |
| Pin number | 16 pole | |
| Contact row assignment | z-d | |
| Grid | 10.16 mm | |
| Connection | solder pin | |
| Orientation | angled | |
| contact surface | silver-plated | |
| Rated current | 15 A | |
| Performance level | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
