09060482903 | Harting

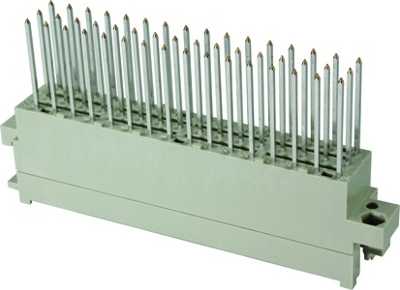

Male connector, type F, 48 pole, z-b-d, pitch 5.08 mm, wire-wrap, straight, gold-plated, 09060482903

Order No.: 44F837
EAN: 4099891018757
MPN:
09060482903
09 06 048 2903
Series: DIN 41612
09060482903 Harting DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
48.0879 € *
Available: 8 pcs.
Leadtime: 8 Weeks **
Total Price:
48.09 € *
Price list
Quantity
Price per unit*
1 pcs.
48.0879 €
10 pcs.
45.6960 €
25 pcs.
42.9590 €
50 pcs.
40.3648 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connector, 09060482903, Harting

Male connector, Wrap termination, Rated current: ‌6 A, Contacts: 48, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Hole coding, Shroud coding, Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Technical specifications
Design F
Contact type pin
Pin number 48 pole
Contact row assignment z-b-d
Grid 5.08 mm
Connection wire-wrap
Orientation straight
contact surface gold-plated
Rated current 6 A
Performance level 1
Logistics
Country of origin RO
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
