09060452875 | Harting
Female connector, type FM, 45 pole, z-b-d, solder/crimp connection, straight, gold-plated, 09060452875
Unit Price (€ / pc.)
15.3748 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
15.37 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3748 €
10 pcs.
14.4109 €
25 pcs.
13.9825 €
50 pcs.
12.9948 €
*incl. VAT plus shipping costs
Subject to prior sale

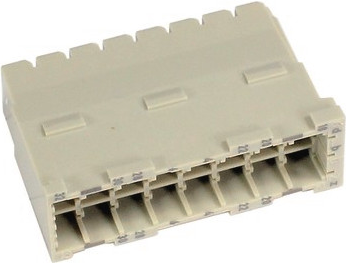

Female connector, 09060452875, Harting
Female connector, Wave soldering termination, Crimp termination, Rated current: 6 A, Contacts: 45, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | FM | |
| Contact type | socket | |
| Pin number | 45 pole | |
| Contact row assignment | z-b-d | |
| Connection | solder/crimp connection | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Rated current | 6 A | |
| Performance level | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
