09060452871 | Harting

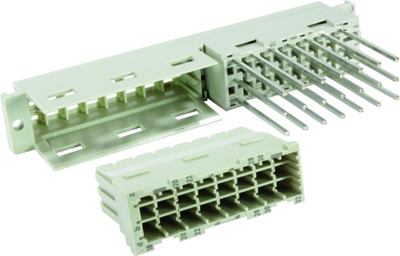

Female connector, type FM, 45 pole, z-b-d, pitch 5.08 mm, wire-wrap, straight, gold-plated, 09060452871

Order No.: 44F825
EAN: 4099891018115
MPN:
09060452871
09 06 045 2871
Series: DIN 41612
09060452871 Harting DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
19.9801 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
19.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
19.9801 €

Female connector, 09060452871, Harting

Female connector, Wrap termination, Rated current: ‌6 A, Contacts: 45, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Technical specifications
Filter Property Value
Design FM
Contact type socket
Pin number 45 pole
Contact row assignment z-b-d
Grid 5.08 mm
Connection wire-wrap
Orientation straight
contact surface gold-plated
Rated current 6 A
Performance level 1
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
