09060316923 | Harting

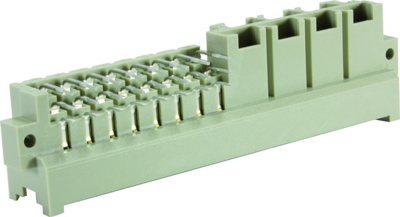

Male connector, type M/H, 24 pole, z-b-d, pitch 4 mm, faston plug, angled, gold-plated, 09060316923
Unit Price (€ / pc.)
12.0904 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
12.09 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0904 €
10 pcs.
11.3407 €
25 pcs.
10.9956 €
50 pcs.
10.2221 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 09060316923, Harting
Male connector, Faston termination, Wave soldering termination, Rated current: 6, 15, Contacts: 31, Copper alloy, Noble metal Mating side, signal contacts, Silver plated Mating side, power contacts, Sn over Ni Termination side, signal contacts, Sn over Ni Termination side, power contacts, Performance level: 2, acc. to IEC 60603-2, Coding: Hole coding, Shroud coding, Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | M/H | |
| Contact type | pin | |
| Pin number | 24 pole | |
| Contact row assignment | z-b-d | |
| Grid | 4 mm | |
| Connection | faston plug | |
| Orientation | angled | |
| contact surface | gold-plated | |
| Rated current | 6 A | |
| Performance level | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
