09032606401 | Harting

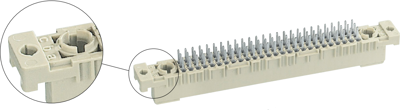

Female connector, type M, 64 pole, a-b-c, solder connection, straight, gold-plated, 09032606401
Unit Price (€ / pc.)
11.6144 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
11.61 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6144 €
10 pcs.
10.5553 €
50 pcs.
9.5081 €
100 pcs.
8.3657 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 09032606401, Harting
Female connector, Wave soldering termination, Rated current: 2 A, Contacts: 64, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Performance level | 2 | |
| Orientation | straight | |
| Design | M | |
| contact surface | gold-plated | |
| Contact row assignment | a-b-c | |
| Pin number | 64 pole | |
| Contact type | socket | |
| Rated current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
