09031642951 | Harting

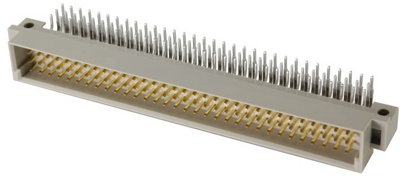

Male connector, type C, 64 pole, AC, pitch 2.54 mm, solder pin, angled, 09031642951
Unit Price (€ / pc.)
6.1642 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
6.16 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1642 €
10 pcs.
5.7834 €
25 pcs.
5.6049 €
50 pcs.
5.2122 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 09031642951, Harting
Male connector with wave soldering termination, angled, coding with loss of contacts, side coding, PCB fixing: with fixing flange.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | C | |
| Contact type | pin | |
| Pin number | 64 pole | |
| Contact row assignment | AC | |
| Grid | 2.54 mm | |
| Connection | solder pin | |
| Orientation | angled | |
| Rated current | 2 A | |
| Performance level | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
