09031606922 | Harting

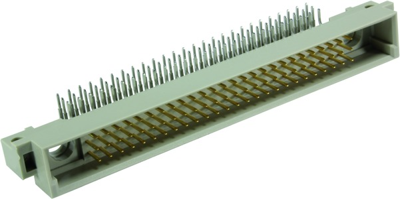

Male connector, type M, 60 pole, a-b-c, pitch 2.54 mm, solder pin, straight, 09031606922

Order No.: 44F410
EAN: 4099891015572
MPN:
09031606922
09 03 160 6922
Series: DIN 41612
09031606922 Harting DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
4.8314 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
4.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.8314 €

Male connector, 09031606922, Harting

Male connector, Wave soldering termination, Rated current: ‌2 A, Contacts: 64, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Technical specifications
Rated current 2 A
Grid 2.54 mm
Pin number 60 pole
Design M
Orientation straight
Connection solder pin
Contact type pin
Contact row assignment a-b-c
Performance level 2
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
