09031326922 | Harting
Male connector, type C, 32 pole, a-c, pitch 2.54 mm, solder pin, straight, gold-plated, 09031326922
Unit Price (€ / pc.)
4.3554 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
4.36 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3554 €
10 pcs.
4.0103 €
50 pcs.
3.6414 €
100 pcs.
3.2844 €
*incl. VAT plus shipping costs
Subject to prior sale

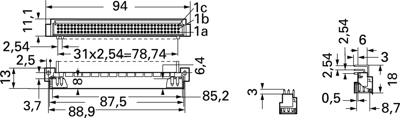

PCB male connector C, straight, 3.0 mm solder pins, type Harting 0903.
Contact assignment: 96-pole rows a, b, c, all contacts. 64-pole rows a, c, all contacts. 32-pole rows a, c each second contact (for 5.08 mm grid). Solder pins for 0.8 mm holes.
Type: 1326922, 32-pole, a-c
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact row assignment | a-c | |
| contact surface | gold-plated | |
| Contact type | pin | |
| Connection | solder pin | |
| Orientation | straight | |
| Pin number | 32 pole | |
| Design | C | |
| Rated current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
