09021646921222 | Harting

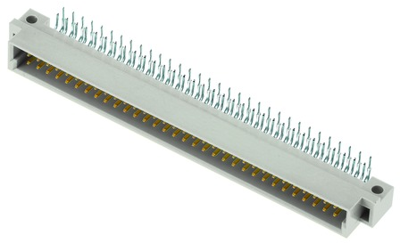

Male connector, type B, 64 pole, a-b, pitch 2.54 mm, solder pin, angled, 09021646921222
Unit Price (€ / pc.)
3.6414 € *
Standard delivery time from the manufacturer is: 6 Weeks
Male connector, 09021646921222, Harting
Male connector, Wave soldering termination, Rated current: 2 A, Contacts: 64, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, Side coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7035 (light grey)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2 A | |
| Performance level | 2 | |
| Contact row assignment | a-b | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Orientation | angled | |
| Design | B | |
| Connection | solder pin | |
| Pin number | 64 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
