09021326931 | Harting

Male connector, type B, 32 pole, a, pitch 2.54 mm, solder pin, angled, gold-plated, 09021326931

Order No.: 52F7940
EAN: 4099891022174
MPN:
09021326931
09 02 132 6931
Series: DIN 41612

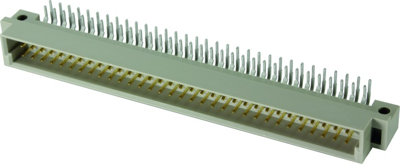

09021326931 Harting DIN PCB Connectors Image 1
09021326931 Harting DIN PCB Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.9393 € *
Available: 143 pcs.
Leadtime: 5 Weeks **
Total Price:
2.94 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9393 €
10 pcs.
2.7370 €
50 pcs.
2.5109 €
100 pcs.
2.2848 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connector, 09021326931, Harting

Male connector, Wave soldering termination, Rated current: ‌2 A, Contacts: 32, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, Side coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Technical specifications
Design B
Contact type pin
Pin number 32 pole
Contact row assignment a
Grid 2.54 mm
Connection solder pin
Orientation angled
contact surface gold-plated
Rated current 2 A
Performance level 2
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
