02021601601 | Harting

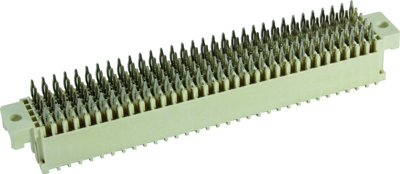

Female connector, 160 pole, z-a-b-c-d, pitch 2.54 mm, press-in connection, straight, gold-plated, 02021601601
Unit Price (€ / pc.)
37.4255 € *
Standard delivery time from the manufacturer is: 27 Weeks
Female connector, 02021601601, Harting
Female connector, Press-in termination, Rated current: 1 A, Contacts: 160, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 1, acc. to IEC 61076-4-113, PCB fixing: With fixing flange, Liquid crystal polymer (LCP), Beige
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Pin number | 160 pole | |
| Contact row assignment | z-a-b-c-d | |
| Contact type | socket | |
| Rated current | 1 A | |
| Connection | press-in connection | |
| Performance level | 1 | |
| contact surface | gold-plated | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
