02011602101 | Harting

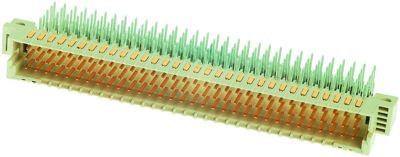

Male connector, 160 pole, z-a-b-c-d, pitch 2.54 mm, solder pin, angled, 02011602101
Unit Price (€ / pc.)
19.8730 € *
Standard delivery time from the manufacturer is: 1 Week
Male connector, 02011602101, Harting
Male connector, Reflow soldering termination (THR), Wave soldering termination, Rated current: 1 A, Contacts: 160, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 61076-4-113, PCB fixing: With fixing flange, Liquid crystal polymer (LCP), Beige
Technical specifications
| Rated current | 1 A | |
| Grid | 2.54 mm | |
| Pin number | 160 pole | |
| Orientation | angled | |
| Connection | solder pin | |
| Contact type | pin | |
| Contact row assignment | z-a-b-c-d | |
| Performance level | 2 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
