09670250435 | Harting
D-Sub connector housing, size: 3 (DB), straight 180°, angled 90°, cable Ø 11.5 mm, thermoplastic, shielded, silver, 09670250435
Unit Price (€ / pc.)
9.0083 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
9.01 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0083 €
10 pcs.
8.4371 €
25 pcs.
8.1872 €
50 pcs.
7.6041 €
*incl. VAT plus shipping costs
Subject to prior sale

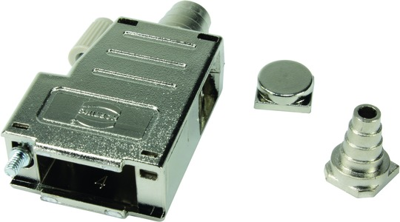

D-Sub connector housing, HARTING, 09670250435
D-Sub connector is an industry standard for cable-to-board connectivity applications. It can be universally used as a device interface, that is particularly suited to configure communication and data interfaces and is the standard for many fieldbus profiles.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell size | 3 (DB) | |
| Cable Outlet | straight 180°, angled 90° | |
| Cable diameter | 11.5 mm | |
| Shell Material | thermoplastic, shielded | |
| Type of locking | knurled screw 4-40 UNC | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | SE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
