09694115136 | Harting

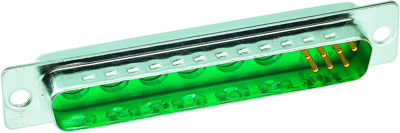

D-Sub plug, 13 pole, 13W6, equipped, straight, solder cup, 09694115136

Order No.: 44F8109
EAN: 4099889803112
MPN:
09694115136
09 69 411 5136
Series: D-Sub
09694115136 Harting D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
8.0087 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
8.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.0087 €

D-Sub plug, 09694115136, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Metal shell: Tin-plated steel

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Filter Property Value
Pin number 13 pole
Performance level 1
Attachment (rear panel) through hole
Grid 2.84 mm
Type of locking through hole
Version pin header
Pole image 13W6
Contact connection solder cup
Additional parts equipped
Assembly straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
