09694015214 | Harting

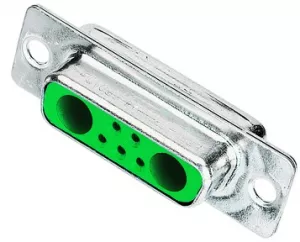

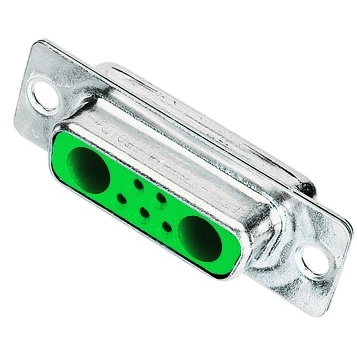

D-Sub socket, 21 pole, 21W4, equipped, straight, solder cup, 09694015214
Unit Price (€ / pc.)
12.9115 € *
Standard delivery time from the manufacturer is: 12 Weeks
D-Sub socket, 09694015214, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Metal shell: Tin-plated steel
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| Pin number | 21 pole | |
| Pole image | 21W4 | |
| Type of locking | through hole | |
| Additional parts | equipped | |
| Grid | 2.84 mm | |
| Version | socket header | |
| Assembly | straight | |
| Attachment (rear panel) | through hole | |
| Performance level | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
