09693009354 | Harting
D-Sub plug, 17 pole, 17W2, straight, solder pin, 09693009354
Unit Price (€ / pc.)
23.8238 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
23.82 € *
Price list
Quantity
Price per unit*
1 pcs.
23.8238 €
10 pcs.
22.1578 €
25 pcs.
20.3847 €
50 pcs.
18.5521 €
*incl. VAT plus shipping costs
Subject to prior sale

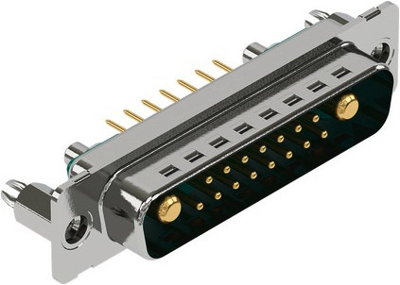

D Sub connector, 09693009354, Harting
Connector, Wave soldering termination, Male, Size: D-Sub 3, Thermoplastic resin, glass-fibre filled (PBT), Shell: steel, tin plated, Green, Contacts: 17, Copper alloy, Gold plated Mating side, Sn over Ni Termination side.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.84 mm | |
| Pin number | 17 pole | |
| Pole image | 17W2 | |
| Version | pin header | |
| Assembly | straight | |
| Performance level | 1 | |
| Type of locking | threaded insert 4-40 UNC | |
| Contact connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
