09693009117 | Harting

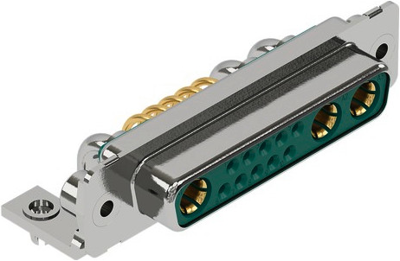

D-Sub socket, 13 pole, 13W3, angled, solder pin, 09693009117
Unit Price (€ / pc.)
34.0221 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
34.02 € *
Price list
Quantity
Price per unit*
1 pcs.
34.0221 €
10 pcs.
31.6421 €
25 pcs.
29.1074 €
50 pcs.
26.4894 €
*incl. VAT plus shipping costs
Subject to prior sale
D Sub connector, 09693009117, Harting
Connector, Wave soldering termination, Female, Size: D-Sub 3, Thermoplastic resin, glass-fibre filled (PBT), Shell: steel, tin plated, Green, Contacts: 13, Copper alloy, Gold plated Mating side, Sn over Ni Termination side.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact connection | solder pin | |
| Performance level | 1 | |
| Pole image | 13W3 | |
| Assembly | angled | |
| Type of locking | threaded insert 4-40 UNC | |
| Pin number | 13 pole | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
