09676379615 | Harting

D-Sub plug, 37 pole, standard, equipped, straight, solder cup, 09676379615

Order No.: 44F7429
EAN: 4099889801538
MPN:
09676379615
09 67 637 9615
Series: D-Sub
09676379615 Harting D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
46.7908 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
46.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
46.7908 €

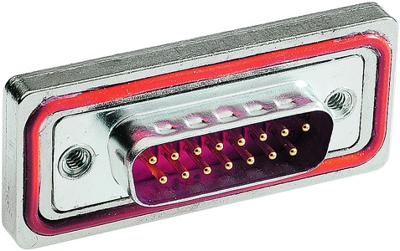

D-Sub plug, 09676379615, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Metal shell: Brass, tin-plated
  • Contact material: Copper alloy
  • Degree of protection: IP67

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Type of locking threaded insert M3
Pole image standard
Attachment (rear panel) metal plate
Assembly straight
Contact connection solder cup
Pin number 37 pole
Version pin header
Additional parts equipped
Performance level 1
Logistics
Country of origin CZ
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
