09676156775 | Harting

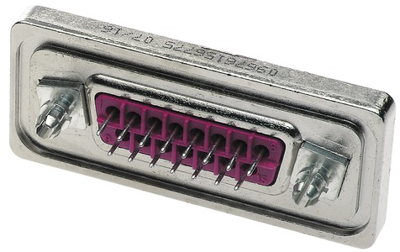

D-Sub socket, 15 pole, standard, equipped, straight, solder pin, 09676156775
Unit Price (€ / pc.)
31.4874 € *
Standard delivery time from the manufacturer is: 24 Weeks
D-Sub socket, 09676156775, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Metal shell: Brass, tin-plated
- Contact material: Copper alloy
- Degree of protection: IP67
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Type of locking | threaded insert 4-40 UNC | |
| Pole image | standard | |
| Attachment (rear panel) | metal plate | |
| Assembly | straight | |
| Grid | 2.74 mm | |
| Contact connection | solder pin | |
| Pin number | 15 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Performance level | 1 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
