09675158715 | Harting

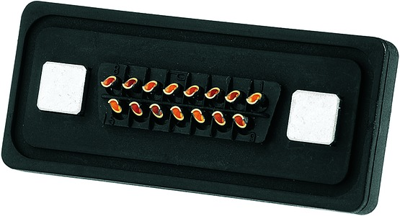

D-Sub socket, 15 pole, standard, equipped, straight, solder cup, 09675158715
Unit Price (€ / pc.)
26.5013 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
D-Sub socket, 09675158715, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Metal shell: Brass, tin-plated
- Contact material: Copper alloy
- Degree of protection: IP67
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Performance level | 1 | |
| Version | Buchsenleiste | |
| Attachment (rear panel) | Kunststoffwinkel mit Leiterplattenverriegelung | |
| Additional parts | bestückt | |
| Contact connection | Lötkelch | |
| Assembly | gerade | |
| Pole image | Standard | |
| Pin number | 15-polig | |
| Type of locking | Gewindeeinsatz M3 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
